Brand Name : XR
Model Number : TB-004
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 EA
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability : 5000EA Per Month
Delivery Time : 10-15 days after get your payment
Packaging Details : Package film for each piece,Several pieces packed in 1 carton
Feature : Easily Assembled, Sustainable, Waterproof
Type : Fencing, Trellis & Gates
Size : 38mm 42mm or 60mm or 89mm or 120mm
Color : Silver+OEM
Connection : Flange
Material : Steel
Used : For Fence Post
Surface treatment : Galvanized
1-3/8'' Galvanized Chain Link Fence Offset Tension Band To Tension Bar
1-3/8'' Tension Band To Tension Bar Information

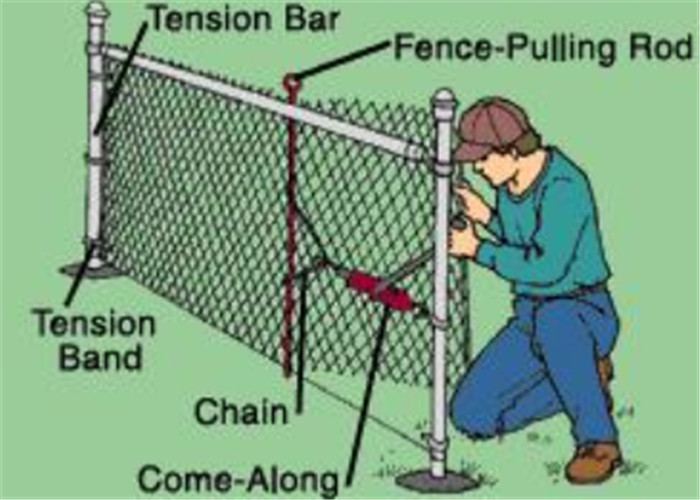

Tensions bands are a critical part of every permanent chain link fence installation. They hold the tension of the fence. Each band is designed to work with a Carriage Bolt that mounts through each side of the band. A tension bar, flat piece of steel, is inserted into the last woven needle of the chain link section and then slid into the opening of the tension band. The tension band is secured around the tension bar and fence with the carriage bolt. Each band is designed with a square shaped bolt hole which allows for the square shape of the carriage bolt head to stay in a fixed position and allow a hex nut to be tightened on the other side. Each band has a galvanized steel core that has been hot-dip galvanized. Why a hot-dip galvanize coating? The added coating provides protection and allows the fitting to withstand the elements of frigid and brutal weather for +25 year
Chain link fence tension bands are often used to attach fence horizontal rails, bottom tension wire, and occasionally barbwire to chain link fence terminal posts.
How do I attach the tension band to my chain link fence?
Tension bands can be slid over the top of a post and mounted in place by inserting a carriage bolt and tightening it with a hex nut and ratchet.
How do I attach a tension band to my chain link fence that already has other items mounted to it?
Tension bands can be bent open with a pair of pliers or by hand (depending on the person). Simply open grab each end of the tension band and apply pressure in a pulling motion. Once open, wrap the band around the post at the desired location. Next, squeeze the two ends back together, by hand or with pliers. Insert a carriage bolt and tighten.
Service | 1. Reply your enquiry in 24 working hours; |
2. Experienced staffs will answer all your questions in professional and fluent English | |
3. Customized design is available. | |
4. Exclusive & unique solution can be provided by our well-trained and professional engineers; | |
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit; | |
6. We will try our best to meet your requirements and supply you best quality of the products. |
FAQ:
How do I attach the tension band to my chain link fence?
Tension bands can be slid over the top of a post and mounted in place by inserting a carriage bolt and tightening it with a hex nut and ratchet.
How do I attach a tension band to my chain link fence that already has other items mounted to it?
Tension bands can be bent open with a pair of pliers or by hand (depending on the person). Simply open grab each end of the tension band and apply pressure in a pulling motion. Once open, wrap the band around the post at the desired location. Next, squeeze the two ends back together, by hand or with pliers. Insert a carriage bolt and tighten.
What side do I mount the tension band?
The long side of the tension band goes on the outside of the chain link fence. The outside is the side for which you want the most security, e.g. carriage bolts will be inserted from the outside, with the bolts being accessible only on the inside of the fence.
Tension Band To Tension Bar Application
![]() |
120mm 1-3/8'' Galvanized Steel Tension Band Chain Link Fence Fittings Images |
